If you are looking for an easy, fast, small and cheap way to develop a Linux
Embedded Application, Fox is the right solution.
Fox is usable either as a complete device for network applications like micro
web server, proxy, router, etc. then as a socket module ready to give the power
of Linux operating system and TCP/IP network capabilities to your application
board.
Acme Systems provides, at no charge, an easy way to compile your C
source code with no need to install any development systems. WebCompiler
is an easy to use web interface to upload, compile and get the executable
code ready to run on your Fox board. Several example of code are available
online Try WebCompiler now
Two extension sockets for IDE, SCSI, serial ports, I/O lines and I2C bus
interface.
Single power supply at 5 Volt DC 200mA.
Extension sockets
On either side of the Fox board it is possible to mount two 20x2 pin strips
connectors step 2.54mm (0.1") to put the Fox over an application board or move
signals to another board using standard 40 pins IDE flat cables.
Many application boards will be available very soon from Acme Systems in
order to extend the possibilities of Fox board in specific tasks:
A Machine To Machine (M2M) application board with GPRS modem, 2 relays,
2 input lines optocoupled, extended voltage power supply (8 to 24 volts AC/DC),
1 RS232/RS485 port.
A fast prototyping board with soldering area, LCD display, Analog lines,
high precision temperature/humidity sensor, relays, RC servo interface, PWM
signals for electric motors, etc. etc

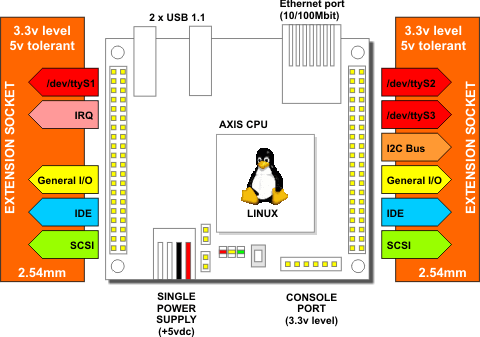

As shown below a lot of peripherals can be connected to the Fox using this
signals:
Up to 2 Parallel Ports or 1 Wide Parallel Port (*)
Up to 4 IDE ports (8 IDE Hard Disks) (*)
Up to 2 SCSI ports or 1 Wide SCSI Port (*)
I2C Bus port (*)
Up to 62 General purpose I/O (*)
Up to 4 Asynch Serial ports (*)(**)
(*) Not all interfaces on
extension sockets can be used at the same time. The peripheral signal
configuration depends on the Kernel setup and line assignments.
(**) 1 asynchronus port is already used as console (/dev/ttyS0), 1 can
be activated disabling USB1 port (/dev/ttyS1), 1 can be configured as
RS485, 2 can be configured as synchronous ports, max date rate on asynch
ports: 6Mbit/s.
The pinout configuration of the extention connectors J6 and J7 changes with the
kernel configuration. Here is the pinout configuration of the default kernel
image provided with Fox board
